RUBBER PARTS | SEAL, PLUG, FLASH MASTER | Flash Master

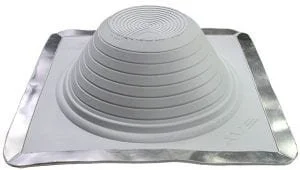

Fix-A-Flash Flash Master
Designed For the metal roofing industry
Fix-A-Flash Flash Master was specially designed for an oversize hole cut on the roof area but with a small pipe. Made with black or gray EPDM rubber or available in high temp gray silicone. Pipe Range: 1/8” (3mm) up to 15” (381mm) pipes. Base: 19-1/2” (495mm).
Description
Applications:
Specially designed for an oversized cut hole with a small pipe size on metal roofs
Made of black or gray EPDM rubber or high temp gray silicone, these flashings are compounded specifically for maximum resistance to weathering due to ozone and ultraviolet light.
The flexible aluminum base is designed for an oversized hole cut for your pipe flashing to conform to any panel configuration.
Closed or open top available
Open top fits: 6-3/4” (171mm) to 15” (381mm) pipes
Closed top fits: closed to 15” (381mm) pipes
Base: 19-1/2” (495mm)
20 Year Warranty
Specifications
ADVANCED OZONE RESISTANCE tested to
EPDM: 70 hour @ 500 pphm
Silicone: 70 hour @ 500 pphm
HIGH TEMPERATURE RESISTANCE tested to:
Intermittent EPDM: +135°C (+275°F)
Intermittent Silicone: +260°C (+500°F)
Continuous EPDM: +100°C (+212°F)
Continuous Silicone: +225°C (+437°F)
LOW TEMPERATURE RESISTANCE tested to:
EPDM: – 55°C (-67°F)
Silicone: – 74°C (-101°F)
COMPRESSION SET Maximum:
EPDM: 25%
Silicone: 50%
*Complete specification data and testing methods are available upon request.
| PART NO. | FLASHING DETAILS | DIMENSION | COMPOUND |
|---|---|---|---|
| FM-FF851BC | A–Pipe Range B–Base | Close Top 0” – 15” (0 – 381mm) 19-1/2” (495 mm) | BLACK EPDM |
| FM-FF851GC | A–Pipe Range B–Base | Close Top 0” – 15” (0 – 381mm) 19-1/2” (495 mm) | GRAY EPDM |
| FM-FF852RC | A–Pipe Range B–Base | Close Top 0” – 15” (0 – 381mm) 19-1/2” (495 mm) | RED SILICONE |
