RUBBER PARTS | SEAL, PLUG, FLASH MASTER | Flash Master

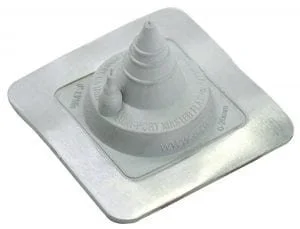

Mini-Port Flash Master
For the Metal Roof Industry.
For Small pipes/wires, solar, electrical applications. Weather Protection Made of Black or Gray EPDM Rubber or High Temp Gray Silicone. Aluminum base allows the flashing to conform to any panel configuration.
Description
Applications:
Designed for small pipes/wires, solar, electrical applications
Weather Protection Made of Black or Gray EPDM Rubber or High Temp Gray Silicone, these flashings are compounded specifically for maximum resistance to weathering due to ozone and ultraviolet light.
The aluminum base allows the flashing to conform to any panel configuration and/or roof pitch.
Center Port: 0″ to 13/16″ (0 to 20mm) Pipes/wires
Small Port: 1/4″ to 3/8″ (6.3 to 9.6mm)
Base size: 3″ (76mm)
20 Year Warranty
Specifications
ADVANCED OZONE RESISTANCE tested to:
EPDM: 70 hour @ 500 pphm
Silicone: 70 hour @ 500 pphm
HIGH TEMPERATURE RESISTANCE tested to:
Intermittent EPDM: +135°C (+275°F)
Intermittent Silicone: +260°C (+500°F)
Continuous EPDM: +100°C (+212°F)
Continuous Silicone: +225°C (+437°F)
LOW TEMPERATURE RESISTANCE tested to:
EPDM: – 55°C (-67°F)
Silicone: – 74°C (-101°F)
COMPRESSION SET Maximum:
EPDM: 25%
Silicone: 50%
| PART NO. | PIPE RANGE | PORT | BASE | COLOR |
|---|---|---|---|---|
| FM-MP051BA | 0” – 13/16” (0mm – 20mm) | 1/4” or 3/8” (6mm or 9mm) | 3” (76mm) | BLACK EPDM |
| FM-MP051GA | 0” – 13/16” (0mm – 20mm) | 1/4” or 3/8” (6mm or 9mm) | 3” (76mm) | GRAY EPDM |
| FM-MP051GX | 0” – 13/16” (0mm – 20mm) | 1/4” or 3/8” (6mm or 9mm) | 3” (76mm) | GRAY SILICONE |
