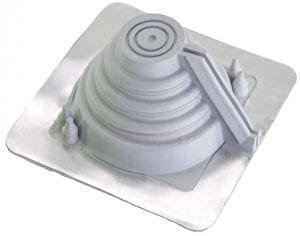

Multi-Port Flash Master
Made as a standard or a retrofit flashing for the metal roof Industry.
Made of black EPDM rubber or high temp gray silicone. The aluminum base allows the flashing to conform to any panel configuration. For electrical or solar applicationsPorts Range: 1/4” to 3/8” (6 to 9.6mm)
Description
Applications:
Made as a standard or a retrofit flashing for the metal roof industry.
Designed as a standard or a retrofit flashing for the metal roof Industry
Made of black EPDM rubber or high temp gray silicone
The aluminum base allows the flashing to conform to any panel configuration and most roof pitches regardless of pipe location.
The no hassle stainless steel gripper included
Two flashings in one no need to carry two types of flashings
Can be used as either as a standard or as a retrofit application
Standard Fits: 1/4” (6mm) to 2–3/4” (70mm) pipes
Retrofit Fits: 1-1/4” (25mm) to 2-1/4” (57mm) pipes
Base: 4-1/2” (114mm)
Ports: 1/4” to 3/8” (6 to 9.6mm)
20 Year Warranty
Specifications
ADVANCED OZONE RESISTANCE tested to:
EPDM: 70 hour @ 500 pphm
Silicone: 70 hour @ 500 pphm
HIGH TEMPERATURE RESISTANCE tested to:
Intermittent EPDM: +135°C (+275°F)
Intermittent Silicone: +260°C (+500°F)
Continuous EPDM: +100°C (+212°F)
Continuous Silicone: +225°C (+437°F)
LOW TEMPERATURE RESISTANCE tested to:
EPDM: – 55°C (-67°F)
Silicone: – 74°C (-101°F)
COMPRESSION SET Maximum:
EPDM: 25%
Silicone: 50%
| PART NO. | STANDARD PIPE RANGE | RETROFIT PIPE RANGE | PORT | BASE | COLOR |
|---|---|---|---|---|---|
| FM-MP101BAG | 1/4” – 2-3/4” (6mm – 170mm) | 1-2/4” – 2-1/4” (25mm to 57mm) | Port: 1/4′ – 3/8”’ (6mm – 9mm) | Base: 1/2-4” (114mm) | BLACK EPDM |
| FM-MP101GXG | 1/4” – 2-3/4” (6mm – 170mm) | 1-2/4” – 2-1/4” (25mm to 57mm) | Port: 1/4′ – 3/8”’ (6mm – 9mm) | Base: 1/2-4” (114mm) | GRAY SILICONE |
