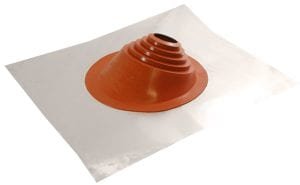

Residential Flash Master
Made for the residential Industry.
Listed with IAPMO (UPC). Built-in 20° pitch allows adaptability to almost any roof pitch including 45°. Available in four sizes.
Description
Applications:
Specifically designed for the residential industry.
Weather protection made of black or gray EPDM rubber or high temp red, gray silicone these flashings are compounded specifically for maximum resistance to weathering due to ozone and ultraviolet light.
A “C20” ASTM additional requirement was added to assure conformance to the most stringent ozone/weathering specifications available.
The addition of fire retarding agents milled directly into the rubber compound creates a self-extinguishing feature which enables it to be used with type “B” vents. Listed with IAPMO certification No.3121
The built-in 20° pitch allows adaptability to almost any roof pitch including 45° The pull tab design and easy smooth tear grooving are intended to eliminate razor knives and allow for a circular hole Easily used on Shingles, Tiles and other residential roofing.
Marked with dimensions to allow for easy sizing to fit each individual application. Aluminum panel allows the pipe boot flashing to conform to any panel configuration and/or roof pitch.
4 sizes
Fits: 1/4” (6mm) up to 18” (457mm) pipes
Base: Mini 16” X 19-1/4” (410 X 490mm) • (#1) 20” X 24” (508 X 609mm) • (#2) 26” X 30” (660 X 762mm) • (#3) 35” X 35” (889 X 889mm)
20 Year Warranty
Specifications
ADVANCED OZONE RESISTANCE tested to:
EPDM: 70 hour @ 500 pphm
Silicone: 70 hour @ 500 pphm
HIGH TEMPERATURE RESISTANCE tested to:
Intermittent EPDM: +135°C (+275°F)
Intermittent Silicone: +260°C (+500°F)
Continuous EPDM: +100°C (+212°F)
Continuous Silicone: +225°C (+437°F)
LOW TEMPERATURE RESISTANCE tested to:
EPDM: – 55°C (-67°F)
Silicone: – 74°C (-101°F)
COMPRESSION SET Maximum:
EPDM: 25%
Silicone: 50%
| PART NO. | PIPE RANGE | BASE | COLOR |
|---|---|---|---|
| FM-RS101BA | 3” – 8” (76mm – 203mm) | 20” x 24” (508mm x 609mm) | BLACK EPDM |
| FM-RS101GA | 3” – 8” (76mm – 203mm) | 20” x 24” (508mm x 609mm) | GREY EPDM |
| FM-RS102RA | 3” – 8” (76mm – 203mm) | 20” x 24” (508mm x 609mm) | RED SILICONE |
| FM-RS101GX | 3” – 8” (76mm – 203mm) | 20” x 24” (508mm x 609mm) | GRAY SILICONE |
| FM-RL201BA | 8” – 11” (203mm – 279mm) | 26” x 30” (660mm x 609mm) | BLACK EPDM |
| FM-RL201GA | 8” – 11” (203mm – 279mm) | 26” x 30” (660mm x 609mm) | GREY EPDM |
| FM-RL202RA | 8” – 11” (203mm – 279mm) | 26” x 30” (660mm x 609mm) | RED SILICONE |
| FM-RL201GX | 8” – 11” (203mm – 279mm) | 26” x 30” (660mm x 609mm) | GRAY SILICONE |
| FM-RL301BA | 11” – 18” (279mm – 457mm) | 35” x 35” (889mm x 889mm) | BLACK EPDM |
| FM-RL301GA | 11” – 18” (279mm – 457mm) | 35” x 35” (889mm x 889mm) | GREY EPDM |
| FM-RL302RA | 11” – 18” (279mm – 457mm) | 35” x 35” (889mm x 889mm) | RED SILICONE |
| FM-RL301GX | 11” – 18” (279mm – 457mm) | 35” x 35” (889mm x 889mm) | GRAY SILICONE |
