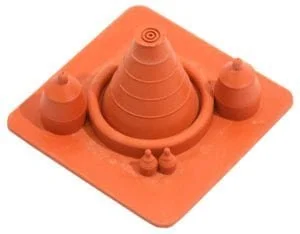

Solar Multi-Port CT Flash Master
Designed for small pipes/wires and solar applications on clay tile roofs
Available in two EPDM colors or high-temperature silicone. No fasteners required. Fits: Closed to 1-15/16” (49mm) pipes. Small Ports for 3/8” (9mm) pipes or wires. Medium Ports for 3/4” (20mm) pipes or wires. Base: 4-1/2” (114mm).
Description
Applications:
For small pipes/wires and or solar applications on clay tile roofs
Available in terracotta, black EPDM rubber or high temp red silicone which are both resistant to ultraviolet rays, cracking & weathering.
Four ports for cables or wires per flashing to accommodate copper pipe and electrical cabling
No Fasteners required
Fits: Closed to 1-15/16” (49mm) pipes
Mini Ports: 3/8” (9mm)
Medium Ports: 3/4” (20mm)
Base: 4-1/2” (114mm)
20 Year Warranty
Specifications
ADVANCED OZONE RESISTANCE tested to:
EPDM: 70 hour @ 500 pphm
Silicone: 70 hour @ 500 pphm
HIGH TEMPERATURE RESISTANCE tested to:
Intermittent EPDM: +135°C (+275°F)
Intermittent Silicone: +260°C (+500°F)
Continuous EPDM: +100°C (+212°F)
Continuous Silicone: +225°C (+437°F)
LOW TEMPERATURE RESISTANCE tested to:
EPDM: – 55°C (-67°F)
Silicone: – 74°C (-101°F)
COMPRESSION SET Maximum:
EPDM: 25%
Silicone: 50%
| PART NO. | PIPE RANGE | PORT | PORT | BASE | COLOR |
|---|---|---|---|---|---|
| FM-SMPCT101BA | 0” – 1-15/16” (0mm – 49mm) | 3/8” (9mm) | 3/4” (20mm) | 16” x 19-1/4” (410mm x 490mm) | BLACK EPDM |
| FM-SMPCT101TC | 0” – 1-15/16” (0mm – 49mm) | 3/8” (9mm) | 3/4” (20mm) | 16” x 19-1/4” (410mm x 490mm) | TERRA COTA EPDM |
| FM-SMPCT101RA | 0” – 1-15/16” (0mm – 49mm) | 3/8” (9mm) | 3/4” (20mm) | 16” x 19-1/4” (410mm x 490mm) | RED SILICONE |
